CHART - Electronic Chart System

Overview

CHART is a little Electronic Chart System for PCs running DOS or Win9x. It supports vector charts and bitmap charts and includes a vector chart editor. GPS data in NMEA format and in "Rockwell NavCore V" format can be received via the serial port and displayed in real time.

Vector charts created with CHART can be converted to the "track" file format used by GARMIN's PC interface software. Thus you can upload your own vector charts to a GARMIN 45 or GPS 12 (and probably most other handheld GPS navigators by GARMIN) ...

To be honest, it wasn't a bad feeling at all when I managed for the first time to see my own vector map on the GARMIN 45 display ... I switched to head-up mode and watched us sailing between the islands on that tiny display. This was something nearly as impressive as the real world outside - the Norwegian archipelago.

GMT and gmt2cha.c

GMT (Generic Mapping Tools) is a very good set of UNIX mapping programs available on the Internet. It includes a 50 MByte data base with the vectorised shoreline of the world in a resolution corresponding to an 1:250000 map. It uses WGS84 and usually has an error of only a few 100m (<500m).

GMT2CHA is a conversion tool that transforms Postscript maps generated by GMT into the vector chart format used by CHART. Thus you can make your own vector maps from the data base availabel with GMT. This is a great starting point for areas where you don't have any bitmap or vector charts available.

Acknowledgements

I really would like to thank Otto Lier for providing the greatest "programming environment" I've ever been able to work in.

Most parts of CHART were written on a Toshiba 387 notebook connected to GPS receivers like GPSPAC (Rockwell NavCore V), GARMIN 45, or GPS 12 whilst sailing in the waters of Horten and Tjøme in the Oslofjord. Thus CHART was developed, tested, and used in its natural environment.

Download

All usual disclaimers apply! You use CHART at your own risk!

CHART may be copied according to the GNU General Public Licence.

CHART - Bug Fix & Update (01-May-2000)

ch000501.zip (366k) bug fix and update for ch000116.zip (requires to unpack ch000116.zip first !!!)
now works also on PII-266 and faster (see ctbppat.zip), grmn2cha updated to support new G7To file format (see below)

NOTE (06-Oct-2000): Unfortunately, there seem to be some problems with the DPMI/EMM386 support in CHART286/287.EXE which might cause CHART and even EMM386 to crash. If you require high reliabity, use CHART86/87.EXE or run CHART286/287.EXE on a pure DOS system without EMM386. I apologise for these inconveniences and will make a fix available as soon as I manage to track down the origin of this problem.

CHART - New Snapshot (18-Apr-2000)

ch000116.zip (576k) CHART 1.3pre snapshot 000116
now with DPMI support (CHART286/287.EXE) for DOS&Win (use >640k ;-), several improvements (re-align bitmap, load file with F8, dashed line on "land side" of shoreline, ...), better menu structure: see chart.hlp (ASCII text) for details!

gmtcha4.zip (82k) GMT2CHA version 4
nose4a.zip (325k) Norway/Sweden charts 1/3 (incl. index)
nose4b.zip (203k) Norway/Sweden charts 2/3
nose4c.zip (215k) Norway/Sweden charts 3/3

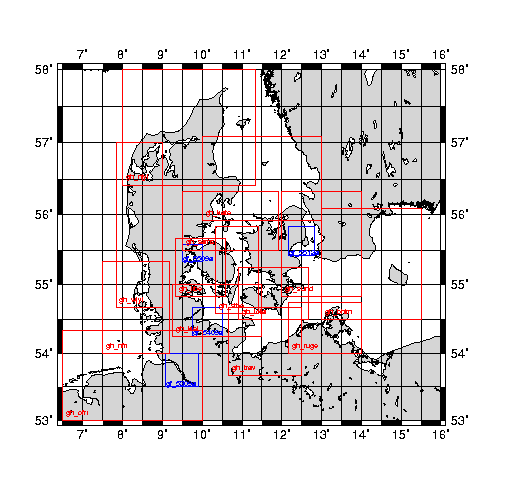

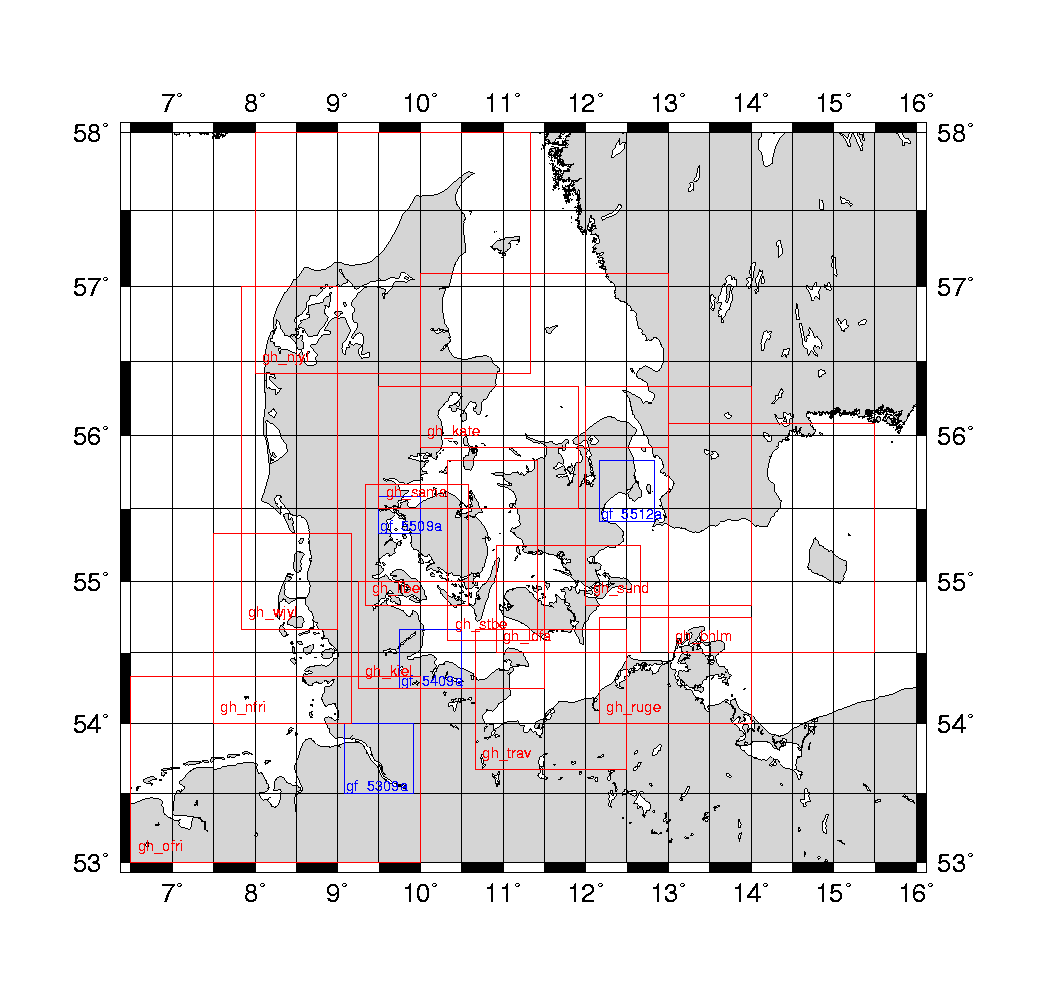

dedk4a.zip (391k) Germany/Denmark charts 1/2 (incl. index)
dedk4b.zip (25k) Germany/Denmark charts 2/2
wrldlc10.zip (321k) worldwide waypoints (airports etc.)
trk4.zip (142k) dedk4 charts as .trk for g7to (<1000 points, fit in GPS12 ;-)
wrldway1.zip (50k) European wrldlc10 as .way/.wpt for g7to/chart

CHART - Version CHART12X (30-Nov-1998)

readme README file for CHART
copying COPYING - GPL (GNU copyleft ;-)
chart12x.zip (344k) CHART 1.2x distribution
readme_g README file for GMT2CHA

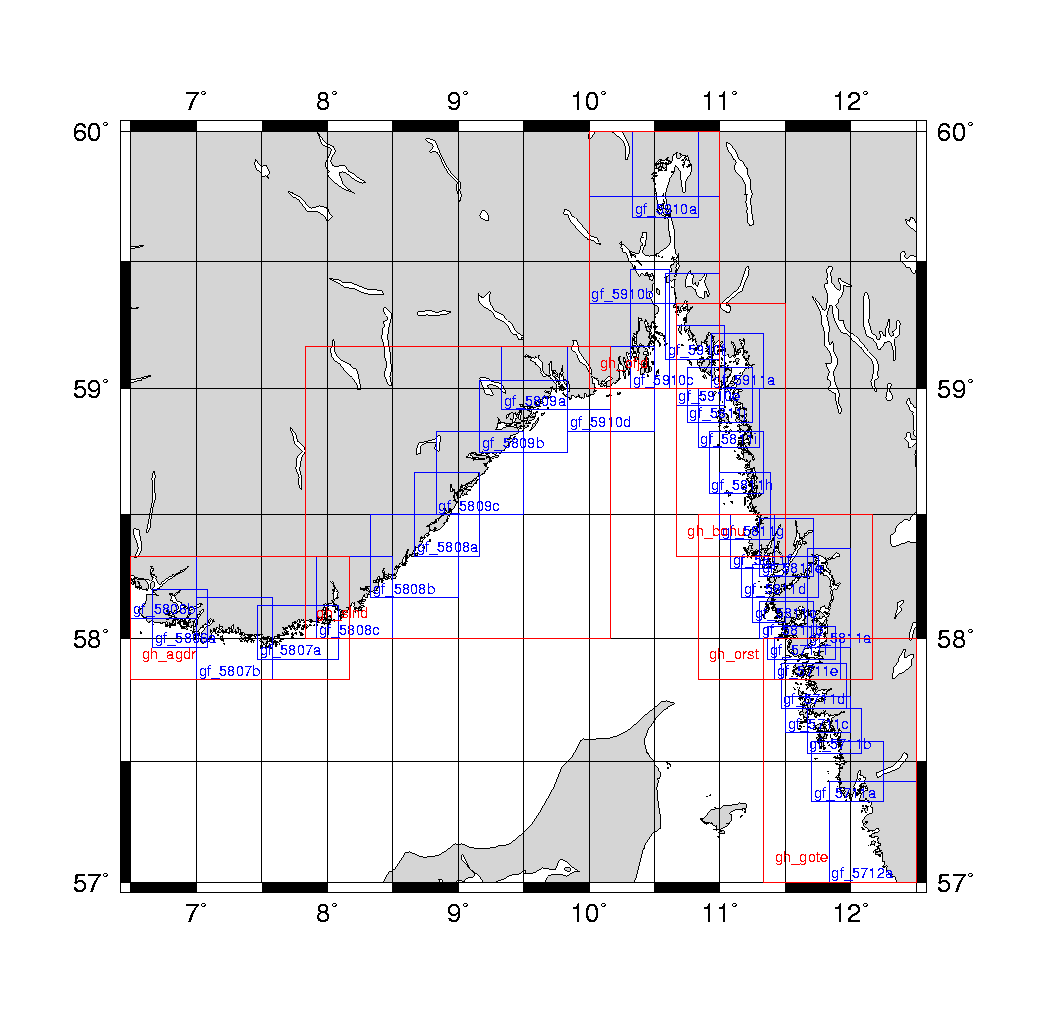

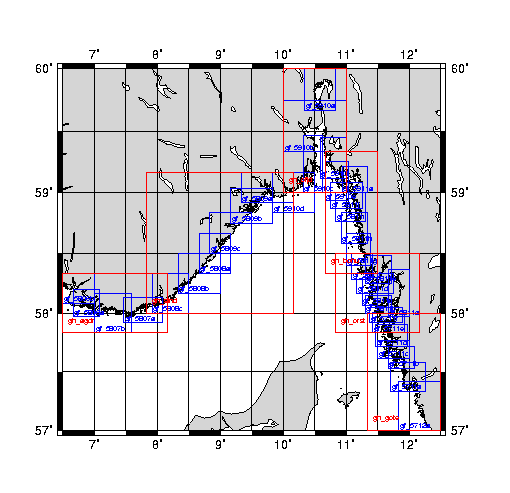

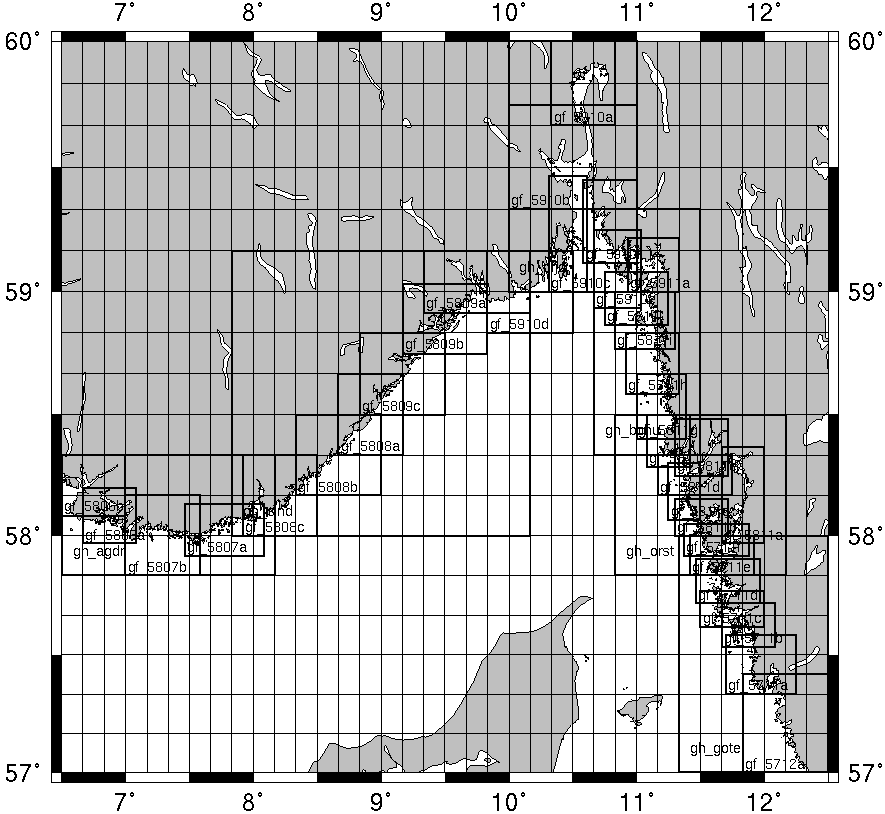

gmtidx.gif overview: charts in gmtcha3*.zip
gmtcha3a.zip (283k) GMT2CHA - software & overview
gmtcha3b.zip (206k) GMT2CHA - charts Norway
gmtcha3c.zip (220k) GMT2CHA - charts Sweden

CHART - Archive

chart12w.zip (300k) CHART 1.2wip distribution
gmtcha2a.zip (280k) GMT2CHA - software & overview
gmtcha2b.zip (205k) GMT2CHA - charts Norway
gmtcha2c.zip (220k) GMT2CHA - charts Sweden

chart10.zip (289k) CHART 1.0 distribution
gmt2cha.zip (273k) GMT2CHA 1.0 distribution (including several vector charts)

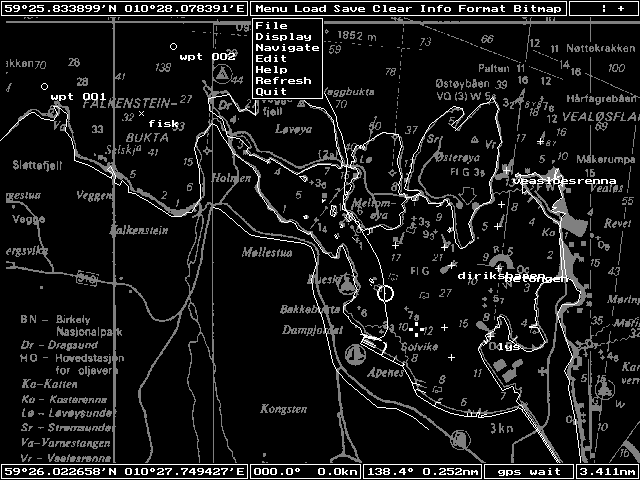

chartscreen.gif A screenshot from CHART 1.0
pkunzip.exe (29k) an unZIPer

G7TO Mirror (11-Jul-2001)

G7TO is free DOS program by Ron Henderson to upload and download data to Garmin GPS receivers using their GRMN/GRMN protocol. When running Windows, the G7TOW or G7TOWIN versions usually work better, but might need 401comupd.exe to update COMCTL32.DLL (see G7ToWin web page for details). For newer versions, check the original G7ToWin web page http://members.home.net/crh24/gps/g7towin/g7towin.htm (new URL since 2001).

g7towin.htm G7ToWin & G7To(W) Overview (web page mirrored 23-Apr-2000)
g7to.zip (188k) G7To distribution (DOS)
g7tow.zip (221k) G7ToW distribution (DOS in WinXX)
g7towin.zip (235k) G7ToWin distribution (WinXX GUI)
g7tosource.zip (287k) G7To source code

g7to98.htm G7TO Overview (old: 1998)
g7to98.zip (86k) G7TO distribution (old: 1998)
g7to98_src.zip (85k) G7TO source code(old: 1998)

G7TO for Linux (April 2002)

In April 2002, David Gesswein ported G7TO to Linux and made this version available at ftp://ftp.pdp8.net/g7to/ (local mirror as of 2002-04-16: README.TXT, g7to.tgz, g7todoc.tgz). To convert the output of this Linux-G7TO into an older DOS-G7TO format understood by my GRMN2CHA converter, I've hacked a tiny script g7to-way2dos.
